Galvanized 7 PC Strand Wire ASTM A416 Prestressed Steel Wire For Concrete

Name: Galvanized 7 PC Strand Wire ASTM A416 Prestressed Steel Wire For Concrete
Brand: Litong Global
Price: 1 USD

China Galvanized 7 PC Strand Wire ASTM A416 Prestressed Steel Wire For Concrete wholesale

Brand Name : Litong Global

Model Number : LT-1806109(1)

Certification : ISO9001-2008

Place of Origin : Anhui,China

MOQ : 10tons

Price : discuss

Supply Ability : 800tons/day

Packaging Details : standard export packing in coil on 2 pallets

Material : 82B

Wire Gauge : 12.5mm/12.7mm/15.2mm/15.24mm/15.7mm

Structure : 1x7

Usage : Concrete Railway Sleeper

Standard : ASTM/BS/GB/T/JIS G

Contact Now

ASTM A416 Prestressed Steel Wire For Concrete , Galvanized 7 Wire Pc Strand

ASTM A416 Prestressed Steel Wire For Concrete 7 Wire Galvanized Pc Strand Prestressed Steel Strand

1. Technical date
7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416

Min.Breaking Strength	Nominal Dia.	Dia. Tolerance	Norminal Steel Area	Nominal Weight	Min. Breaking Load	Min.Load at 1%Extension	Min.Elongation Lo≥610mm	0.7 G.U.T.S 1000hNorminal Relaxation
MPA	mm	mm	Mm2	Kg/Km	KN	KN	%	%
1860	9.53	+0.66,-0.15	54.84	432	102.3	92.1	≥3.5	≤2.5
	11.11		74.19	582	137.9	124.1
	12.70		98.7	775	183.7	165.3
	15.24		140.0	1102	260.7	234.6
	17.80		190.0	1492	353.0	318.0
2000	12.70	+0.66,-0.15	98.7	775	197.4	177.7	≥3.5	≤2.5
2000	15.24	+0.66,-0.15	140.0	1102	280.0	252.0	≥3.5	≤2.5

Min.Breaking Strength	Nominal Dia.	Dia. Tolerance	Norminal Steel Area	Nominal Weight	Min. Breaking Load	Min.Load at 1%Extension	Min.Elongation Lo≥610mm	0.7 G.U.T.S 1000hNorminal Relaxation
MPA	mm	mm	Mm2	Kg/Km	KN	KN	%	%
1860	9.50	+0.30,-0.15	54.8	432	102	86.6	≥3.5	≤2.5
	11.10	+0.30,-0.15	74.2	580	138	117
	12.70	+0.40,-0.20	98.7	775	184	156
	15.20		140	1101	259	220
	15.70		150	1178	279	251
	17.80		191	1500	353	318
1960	12.70	+0.40,-0.20	98.7	775	193	174	≥3.5	≤2.5
	15.20	+0.40,-0.20	140	1101	274	247	≥3.5	≤2.5

2. Factory Tour
Raw Material

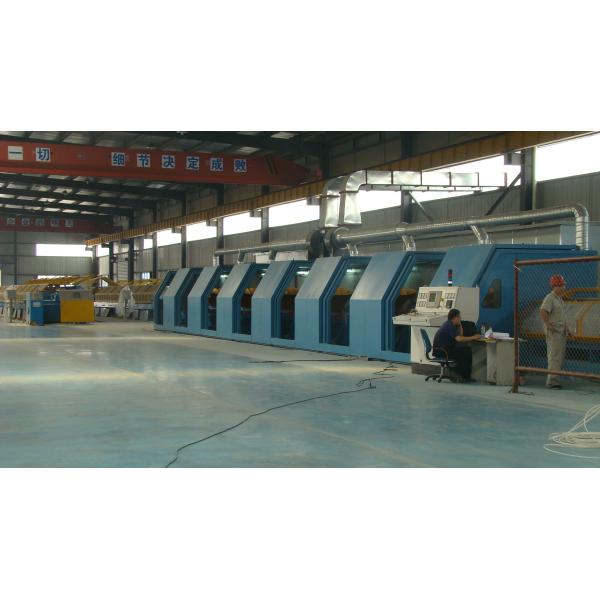

workshop

Packing

3.FAQ
1. Q: Are you a factory or a trading company?
A: We are factory, but with our own international sales department. We can export directly.
2. Q: Can you provide samples?
A: Yes, if the sample is available in stock.
3. Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
4. Q: What is the delivery time?
A: It is based on the order, normally 15 - 20 days after receiving the deposit or L/C at sight.
5. Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
6. Q: What are your payment terms?
A: T/T, 30% advance, and balance against the copy of B/L within 3-5 days or100% irrevocable L/C at sight.
7.Q: What is your MOQ?
A: 10 tons for common size, or mix sizes for a 20 GP container.

Product Tags:

prestressing steel 7 wire strands

stranded steel cable

Galvanized 7 PC Strand Wire ASTM A416 Prestressed Steel Wire For Concrete Images
