12.5mm Pre - Stressing Wire Strand Grade 1860 For Producing Telegraph Poles

Name: 125mm Pre Stressing Wire Strand Grade 1860 For Producing Telegraph Poles
Brand: LiTong Global
Price: 1 USD

China 12.5mm Pre - Stressing Wire Strand Grade 1860 For Producing Telegraph Poles wholesale

Brand Name : LiTong Global

Model Number : LT-171218

Certification : ISO9001-2008

Place of Origin : Anhui,China

MOQ : 10tons

Price : discuss

Supply Ability : 900tons/day

Packaging Details : standard export inner packing anti-rust paper and outer water-proof paper in coil on 2 pallets

Name : Pre-stressing Wire Strand

Size : 12.5mm

Construction : 1x7

Grade : 1860MPA

Packing : Inner anti-rust paper and outter water-proof paper

Loading : 25tons/20"

Contact Now

12.5mm (1x7)Pre-stressing Wire Strand Grade 1860

1.Technical date:

Technical parameter for 7-Wire Uncoated Steel Strand for Prestressed Concrete 12.5mm in the below

Min.Breaking Strength

Nominal

Dia.

Norminal

Steel

Area

Nominal Weight

Min.

Breaking Load

Min.Load

at 1%Extension

Min.Elongation

Lo≥610mm

0.7 G.U.T.S

1000hNorminal Relaxation

MPA

Mm2

Kg/Km

1860

12.50

726

(+/-2%)

173

149

≥3.5

≤2.5

2.Application:

Use to produce Telegraph pole,High-speed rail.,Road bridge,buildings,foundations,stadiums,airport hangers, pre-cast segments, crane beams, anchorages and multi-storey industrial buildings etc

3.Approvals,Certifications and Testing

.ISO9002-2008

.CANS-Certified

.China National Construction Steel Quality Supervision and Test Center Railway

4.Main Production Standard:ASTM A 416,GB/T5224,BS5896,JIS G 3536 etc.

5.Main Size:Size:9.53mm,12.7mm,15.24mm,17.8mm(9.5mm,12.7mm,15.2mm,15.7mm)

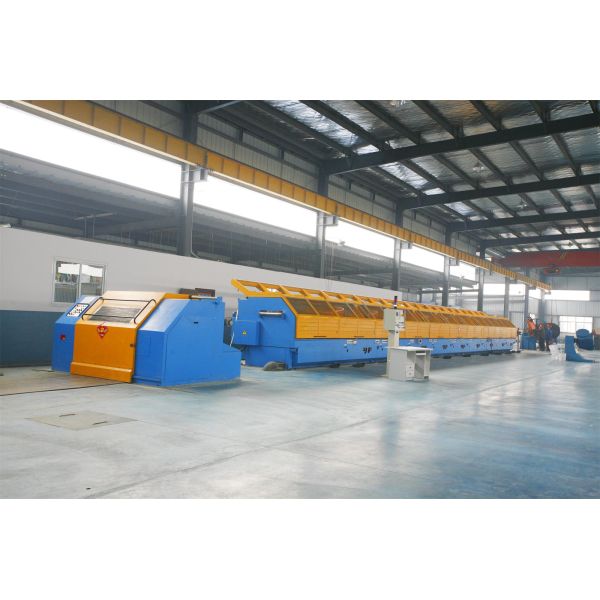

6.Company tour:

12.5mm Pre - Stressing Wire Strand Grade 1860 For Producing Telegraph Poles

Welcome to enquiry our PC Steel Wire Strand

Attn:Ms Nancy

Tel:86-555-6757570

Mobile:86-13855514957

Skype:nancylsl

E-mail:greatsteelwirecable@yahoo.com

13855514957@163.com

Web:www.greatsteelwirecable.com
