High Tensile Galvanized Steel Wire Strand ASTM 475 498 For Highways , Airport

Name: High Tensile Galvanized Steel Wire Strand ASTM 475 498 For Highways Airport
Brand: Litong Global
Price: 1 USD

China High Tensile Galvanized Steel Wire Strand ASTM 475 498 For Highways , Airport wholesale

Brand Name : Litong Global

Model Number : LT-161201

Certification : ISO9001-2008

Place of Origin : Anhui,China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 400tons/day

Packaging Details : Standard export seaworthy packing

STEEL GRADE : HIGH CARBON STEEL

STANDARD : ASTM,BS,IEC

TYPE : GALVANIZED

ALLOY OR NOT : NON-ALLOY

SPECIAL USE : FREE CUT STEEL

SURFACE : HOT-DIPPED GALVANIZED

MODEL NUMBER : 1*7,1*19

PACKING : 1000-5000M/DRUM

LOADING CAPACITY : 20-25TONS/20"

Contact Now

Specifications

Galvanzied steel wire strand
Galvanized steel wire strand for ground wires, steel core for ACSR, Stay wires ,Guy wires

GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:

1. Galvanzied steel wire strand for

ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers

2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM

1X19, 5.00---19.00MM

3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183

4. Galvanized steel wire strand packing: 5000ft/1524mts/reel

ASTM A 475-2003
Norminal Diameter		No.of wires	Diameter of wire	Tolerance of wiere	Weight	Zinc coating	Broken Loading
Inch	mm	pcs	mm	± mm	Kgs/100M	G/M2	Lbf	Kn
1/8"	3.18	7	1.04	0.05	48	122	1830	8.14
5/32"	3.97	7	1.32	0.05	76	122	2940	13.078
3/16"	4.76	7	1.57	0.08	109	153	3990	17.748
7/32"	5.56	7	1.83	0.08	146	153	5400	24.02
1/4"	6.35	7	2.03	0.08	180	183	6650	29.581
9/32"	7.14	7	2.36	0.10	244	214	8950	39.812
5/16"	7.94	7	2.64	0.10	305	244	11200	49.82
3/8"	9.52	7	3.05	0.10	407	259	15400	68.503
7/16"	11.11	7	3.68	0.13	595	275	20800	92.523
1/2"	12.7	7	4.19	0.13	770	275	26900	119.657
9/16"	14.29	7	4.78	0.13	1000	305	35000	155.688
5/8"	15.88	7	5.26	0.13	1211	305	42400	188.605

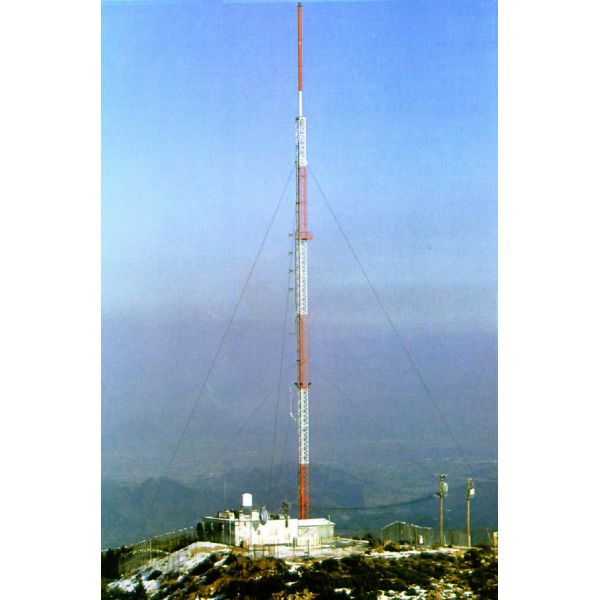

5.Application photos:

High Tensile Galvanized Steel Wire Strand ASTM 475 498 For Highways , Airport

6.Packing &Loading

High Tensile Galvanized Steel Wire Strand ASTM 475 498 For Highways , Airport

Welcome to enquiry our Galvanized steel wire strand

Attn:Ms Nancy

What'app:0086-13855514957

E-mail:nancylsl@hotmail.com

Skype:nancylsl
