ASTM A416 BS 5896 7 Wire Strand Pc Steel With 2.0-3.5 Tons Coil Weight

Name: ASTM A416 BS 5896 7 Wire Strand Pc Steel With 2035 Tons Coil Weight
Brand: LITONG GLOBAL
Price: 1 USD

China ASTM A416 BS 5896 7 Wire Strand Pc Steel With 2.0-3.5 Tons Coil Weight wholesale

Brand Name : LITONG GLOBAL

Model Number : LT-161227(1)

Certification : ISO9001-2008

Place of Origin : ANHUI,CHINA

MOQ : Negotiable

Price : Negotiable

Supply Ability : 800tons/day

Packaging Details : Export Packing, Standard Export Packing

Model NO. : 9.3, 9.53, 11.1, 12.5, 12.7, 15.2, 15.7, 21.8mm

Relaxation at 1000h Not More Than : 2.5%

ensil Strength : 1720~1960mpa

Coil Size : ID 0.70-0.72m, Od 1.0-1.5m, Width 0.76m

Elongation at Max Load Not Less Than : 3.5%

Alloy or Not : Non-Alloy

Coil Weight : 2.0~3.5 Tons

Transport Package : Export Packing, Standard Export Packing

Specification : GB, ASTM, DIN, BS

HS Code : 73121000

Contact Now

Product Description

1*7 Wires Low Relaxation PC Strand
Description:
High tensile low relaxation steel strand for prestressed concrete
Specification:
Raw Material: High carbon steel wire rod SWRH 82B
Sizes: 9.3, 9.53, 10.8, 11.1, 12.5, 12.7, 12.9, 15.2, 15.7, 17.8, 18.0, 18.9, 21.6, 21.8mm
Standards: ASTM A416-2006, ASTM A910-2005, ABNT NBR 7483:2008, AS 1311(Australia), AS/NZS 4672.1, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006-1983, JISG3536, KSD7002, UNE36094-97 (Spain), NEN3868

7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416

Min.Breaking Strength	Nominal Dia.	Dia. Tolerance	Norminal Steel Area	Nominal Weight	Min. Breaking Load	Min.Load at 1%Extension	Min.Elongation Lo≥610mm	0.7 G.U.T.S 1000hNorminal Relaxation
MPA	mm	mm	Mm2	Kg/Km	KN	KN	%	%
1860	9.53	+0.66,-0.15	54.84	432	102.3	92.1	≥3.5	≤2.5
	11.11		74.19	582	137.9	124.1
	12.70		98.7	775	183.7	165.3
	15.24		140.0	1102	260.7	234.6
	17.80		190.0	1492	353.0	318.0
2000	12.70	+0.66,-0.15	98.7	775	197.4	177.7	≥3.5	≤2.5
2000	15.24	+0.66,-0.15	140.0	1102	280.0	252.0	≥3.5	≤2.5

7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength	Nominal Dia.	Dia. Tolerance	Norminal Steel Area	Nominal Weight	Min. Breaking Load	Min.Load at 1%Extension	Min.Elongation Lo≥610mm	0.7 G.U.T.S 1000hNorminal Relaxation
MPA	mm	mm	Mm2	Kg/Km	KN	KN	%	%
1860	9.50	+0.30,-0.15	54.8	432	102	86.6	≥3.5	≤2.5
	11.10	+0.30,-0.15	74.2	580	138	117
	12.70	+0.40,-0.20	98.7	775	184	156
	15.20		140	1101	259	220
	15.70		150	1178	279	251
	17.80		191	1500	353	318
1960	12.70	+0.40,-0.20	98.7	775	193	174	≥3.5	≤2.5
	15.20	+0.40,-0.20	140	1101	274	247	≥3.5	≤2.5

Usages:
Pre-stressing steels apply to post-tensioned and pre-tensioned concrete structure in the follow civil engineering, building construction and infrastructure projects: bridges; railway sleeper, subway track board; airport; industrial buildings, commercial buildings, residential housing foundations; PC poles, piles, beams, girders, slabs, double-T board, hollow floor board, floor, parking decks, PHC, PPCP; electric power, nuclear power station; ports, dams, water project, sewage treatment, swimming pool; rock-coil anchoring, side slope stabilization, coil mine; storage tank for national gas, oil, grain; stadiums, TV tower etc.

ASTM A416 BS 5896 7 Wire Strand Pc Steel With 2.0-3.5 Tons Coil Weight

Production Process:

Trade Terms:
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC

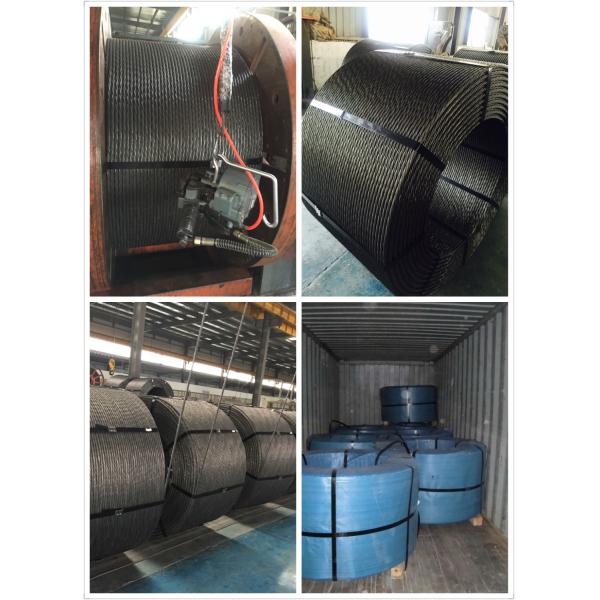

Packing&Loading

Contact us:

ASTM A416 BS 5896 7 Wire Strand Pc Steel With 2.0-3.5 Tons Coil Weight
